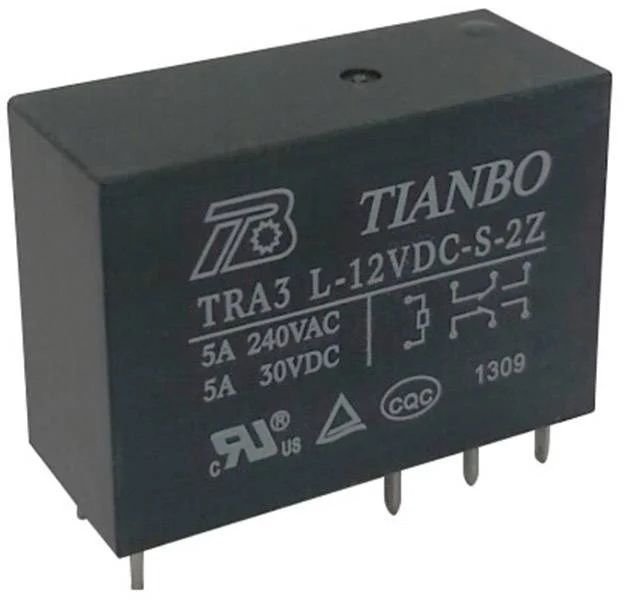

Tainbo TRA3L-12VDC-S-2Z БУ

Type TRA3 L-12VDC-S-2Z Coil nominal voltage 12 V DC Control mode monostable, 1 coil Resistance (coil) 270 Ω Coil voltage rating 0.54 W Contact type 2 change-overs Contact material Silver alloy Switching voltage (max.) 30 V DC 240 V AC Switching current (max.) 8 A Max. switching capacity 1250 VA 240 W Connection Solder pins Response time 20 ms Fall time 10 ms Electrical lifespan 100 000 Switching cycles Durability 1000 0000 switching cycles Min. temperature -40 °C Max. temperature +85 °C Length 29 mm Width 12.7 mm Height 20.4 mm
